Plano-concave cylindrical lenses provide uni-axial negative imaging for anamorphic beam expansion and a wide range of applications. These lenses are manufactured from UV transmitting Fused Silica and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section.

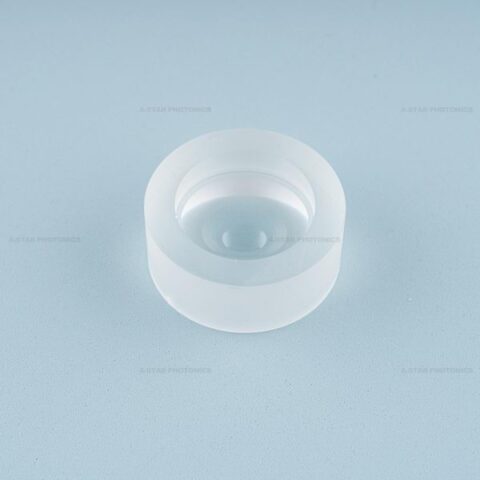

Double-Concave Lens
Concave side can be used as a reflector coating substrate
Plano-concave cylindrical lenses provide uni-axial negative imaging for anamorphic beam expansion and a wide range of applications. These lenses are manufactured from UV transmitting Fused Silica and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section. To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number. These lenses may also be used as mirror is required.
1) Processing Range: φ10-φ300mm
2) The Best Fit Radius: Convex Surface +10mm∞, Concave Surface -60mm∞
3) O.D.FO The Polished Part: φ10φ220mm
The Best Fit Radius: Convex Surface +10mm∞, Concave Surface -45mm∞
4) Profile Accuracy (By Taylorsurf PGI) : Pv0.3μm
5) Surface Finish Standard: 20/1040/20
6) Be in Accordance With Mil-o-13830A
7) Single Piece Work
