LBO crsytal (Lithium Tri-borate) is one of the most useful nonlinear optical material not just for its relatively large conversion coefficient – 3x that of KDP, but also for its excellent physical propertie

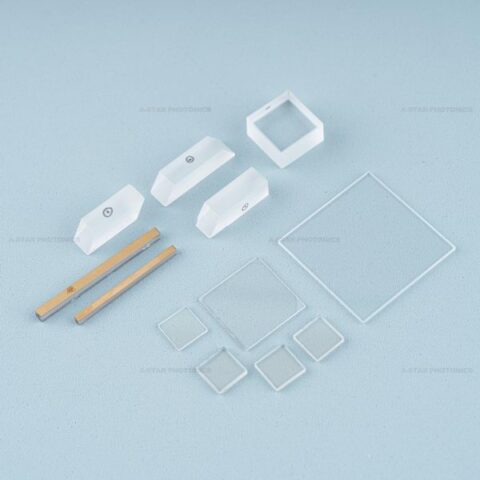

LBO Crystals

Lithium triborate (LiB₃O₅ or LBO) is an excellent nonlinear optical crystal, invented and developed by the Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences.

Advantages of LBO Crystals:

LBO Crystal is a highly versatile and widely used nonlinear optical crystal, recognized for its exceptional properties that make it ideal for various high-power laser applications, including frequency doubling and parametric oscillation.

1. Wide Transparency Range: LBO crystals have a broad optical transparency range from 160 nm to 2600 nm, covering the UV, visible, and near-infrared regions. This makes them suitable for a wide variety of laser sources.

2. Excellent Frequency Conversion Efficiency: LBO exhibits a relatively high frequency conversion efficiency, approximately three times that of potassium dihydrogen phosphate (KDP) crystals. It is particularly effective in second-harmonic generation (SHG) and third-harmonic generation (THG) for Nd:YAG, Nd:YLF, and Ti:sapphire lasers.

3. High Damage Threshold: LBO crystals can withstand high-intensity laser applications due to their impressive laser damage threshold. At 1064 nm, they can handle up to 45 GW/cm², making them ideal for high-power and ultra-fast laser systems.

4. Low Thermal Effects: Compared to other nonlinear crystals like KTP, LBO has minimal thermal lensing effects. This is crucial for maintaining beam quality in high-power operations.

5. Broad Phase Matching Capabilities: LBO supports both Type I and Type II non-critical phase matching (NCPM). Type I NCPM works within the 1000-1300 nm range, and Type II NCPM operates from 800 to 1100 nm, both at room temperature. This versatility allows LBO crystals to accommodate a variety of laser wavelengths and applications.

6. High Optical Homogeneity: LBO crystals are known for their high optical homogeneity (dn ~10-6) and are typically grown with minimal internal defects, making them suitable for precision laser applications.

7. Wide Acceptance Angle and Small Walk-Off: The large acceptance angle and small walk-off angle reduce beam quality requirements for the input laser, making alignment easier and reducing sensitivity to input beam parameters.

8. Applications in High-Power Lasers: LBO is widely used in SHG and THG processes for lasers like Nd:YAG and Ti:sapphire, as well as in Optical Parametric Oscillators (OPOs) and Optical Parametric Amplifiers (OPAs), supporting both continuous-wave and ultra-fast laser systems.

LBO crystals offer a combination of high frequency conversion efficiency, wide transparency, and superior physical robustness, making them a preferred material for advanced nonlinear optics, especially in high-power and ultra-fast laser systems.

Characteristics of LBO  Crystal:

LBO crystals exhibit excellent optical quality, extremely high laser damage thresholds, and strong UV transparency, along with effective second-harmonic generation (SHG) properties. This makes LBO a valuable crystal for ultraviolet (UV) frequency doubling applications. However, the significant anisotropy in its thermal expansion coefficients along different crystal axes (ax = 10.8×10⁻⁵/K, ay = 8.8×10⁻⁵/K, xz = 3.4×10⁻⁵/K) poses challenges in processing, such as cutting, grinding, and polishing, which directly impact the final quality and lifespan of the device.

The processing steps include directional cutting, rough shaping, grinding, and polishing. Due to the large variations in thermal expansion along different crystal directions, each step must minimize mechanical stress-induced damage. For cutting, the feed rate and coolant oil temperature need to be controlled to avoid crack formation caused by excessive speed. Rough grinding removes surface marks and damage layers left by cutting, while ensuring surface precision for subsequent stages.

LBO Crystal Physical Property

Chemical Formula

LiB3O5

Crystal StructureOrthorhombic, mm2
Cell Parametersa = 8.4473, b = 7.3788Å, c = 5.1395Å, Z = 2
Melting point834°C
Optical homogeneityd n ~ 10-6/cm
Mos hardness6
Density2.47 g/cm3
Absorption coefficient< 0.1%/cm (at 1064 nm and 532 nm)
Specific heat1.91J/cm3xK
Hygroscopic susceptibilitylow
Thermal expansion coefficientsa, 4 x 10-6/K; c, 36 x 10-6/K
Thermal conductivity^ c, 1.2 W/m/K; //c, 1.6 W/m/K

Linear Optical Properties

Transparency range1 60-2600 nm
Refractive indices:
at 1064 nm
at 532 nm
at 355 nm
nx = 1.5656, ny = 1.5905, nz = 1.6055
ne = 1.5785, no = 1.6065, nz = 1.6212
ne = 1.5971, no = 1.6275, nz = 1.6430
Therm-optic coefficientsdno / dT = -9.3 x 10-6/°C
dne / dT = -16.6 x 10-6/°C
Sell Meier Equations (l in mm)

no2 (l) = 2.7359 – 0.01354l2+ 0.01878/(l2-0.01822)
ne2(l) = 2.3753 – 0.01516l2+ 0.01224/(l2-0.01667)

Nonlinear Optical Properties

Phase-matchable output wavelength554 – 2660 nm (type I), 790 – 2150 nm (type II)
NLO coefficientsd33 = 0.06; d32 = 1.2; d22 = 1.1
Walk-off Angles(@ 1064 nm)0.4° (Type I SHG), 0.3° (Type II SHG)
Acceptance Angles(@1064 nm) for SHG Type I9.6(mrad-cm) CPM at 25°C 248(mrad-cm) NCPM at 150°C
Electro-optic coefficientsg 11 = 2.7 pm/V, g 22, g31 < 0.1g11
Conversion Efficiency>90% (1064 -> 532nm) Type I SHG
Damage threshold
at 1064 nm
at 532 nm at 355 nm
45 GW/cm2 (1 ns); 10 GW/cm2 (1.3 ns)
26 GW/cm2 (1 ns); 7 GW/cm2 (250 ps) 22 GW/cm2

Lithium Tri-borate Crystal Specifications

Thin crystals: (5-10) x (5-10) x (0.01-3) mm3
Regular sizes: 2 x 2 mm2 to 30 x 30 mm2 in cross-section, up to 60 mm in length
Absorption: < 20ppm (0.00002%) @1064
S/D of 0/0 for cross-section: up to 5 x 5 mm
Different cuts, sizes and AR coatings are available upon request.

Nonlinear LBO crystals, LBO crystal have wide transparency region, Broad type 1 and type 2 NCPM, small walk-off angle and high damage threshold.
LBO Crystal is a non-linear optics crystal, owns LBO crystal’s production capability in our modern workshops.

lbo crystals

lbo crystals

A-Star LBO crystal Workshop

A-Star LBO crystal Workshop

LBO crystal by Cristal Laser manufacturer


LBO crystal
(Lithium Triborate – LiB3O5) has become the material of choice for high power laser applications from the UV to NIR.

Nonlinear LBO crystals, LBO crystal have wide transparency region, Broad type 1 and type 2 NCPM, small walk-off angle and high damage threshold.

Lithium Tri-borate Crystal

It is unique in many aspects, especially its wide transparency range, moderately high non-linear coupling, high damage threshold and good chemical and mechanical properties. Its transmission range is from 0.16m to 2.6m.
LBO crystals allows temperature-controllable non-critical phase-matching (NCPM) for 1.0-1.3 m, Type I SHG, and also provides room temperature NCPM for Type II SHG at 0.8-1.1 m. It possesses a relatively large angular acceptance bandwidth, reducing the beam quality requirements for source lasers.

Nonlinear LBO crystals, LBO crystal have wide transparency region, Broad type 1 and type 2 NCPM, small walk-off angle and high damage threshold.

Tag:LBO, nonlinear, high damage threshold, frequency doubling, high power lasers, crystal LBO, Crystals,nonlinear and laser crystals, crystal, lbo, second harmonic generation, lithium triborate.

One Response to LBO Crystals
  1. LBO Features

    Wide transmission region from 160 nm to 2600nm
    Large effective second-harmonic-generation (SHG) coefficient (about three times that of KDP)
    Good mechanical and physical properties
    High damage threshold of 18.9 GW/cm2 for a 1.3 ns laser at 1053 nmv
    Both Type I and II NCPM in a wide wavelength range is possible
    Wide acceptance angle and small walk-off
    High optical homogeneity with δn≈10-6/cm
    Spectral NCPM near 1300 nm

    LBO Crystal Applications

    Frequency doubling and tripling of Nd:YAG and Nd:YLF lasers.
    SHG and THG for middle and high power Nd: lasers at 1064 nm for medical, industrial and military applications
    SHG and THG of high power Nd: lasers at 1342 nm & 1319 nm for red and blue laser
    Optical parametric amplifiers (OPA) and oscillators (OPO) pumped by Excimer lasers and harmonics of Nd:YAG lasers.
    Optical parametric chirped pulse amplification (OPCPA) in ultrafast pulse system
