Due to the rotation activity of natural quartz crystal, it also can be used as polarization rotators so that the plane of input linearly polarized beam will be rotated at special angle which is determined by the thickness of quartz crystal.

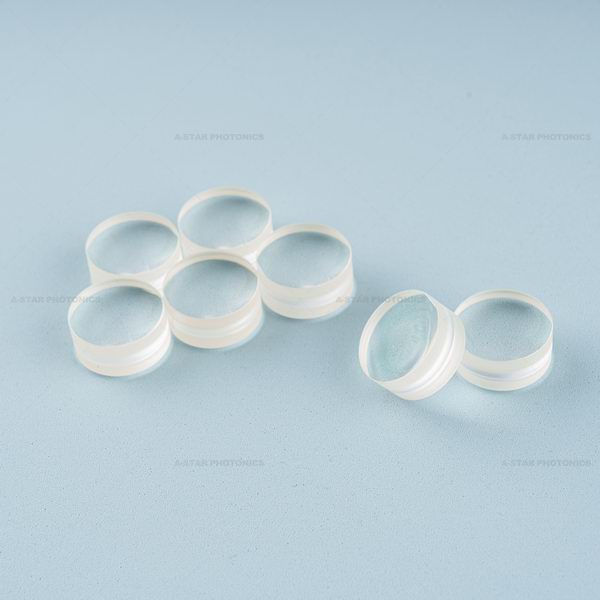

Polarization Rotator
Polarization rotators offer 45deg or 90deg rotation at a number of common laser wavelength, the optical axis in a polarization rotator is perpendicular to the polished face of the optic. The result is that the orientation of in put linearly polarized light is rotated as it propagates through the device.
Polarization Rotator Specifications:
| Attribute | Specification |
| Material: | Optical Grade Crystal Quartz |
| Dimension Tolerance: | +0.0, -0.2mm |
| Surface Quality: | 20/10 Scratch/Dig |
| Flatness: | < l /8@632.8nm |
| Wavelength Range: | 440-1600nm |
| Retardation Accuracy: | <5 arc minutes |
| Clear Aperture: | >90% |
| AR Coating: | R<0.2% at central wavelength |
| Rotation Orientation: | counter-clockwise |
| Standard Wavelength: | 532nm, 632.8nm, 1064nm: |
Due to the rotation activity of natural quartz crystal, it also can be used as polarization rotators so that the plane of input linearly polarized beam will be rotated at special angle which is determined by the thickness of quartz crystal.
- Made of quartz, 200-2500nm
- Up to 50.8mm diameter
- Custom rotation angle available
- RoHS Compliant
Specifications
| Material | Crystal Quartz 200-2500nm |
| Dimension Tolerance | ±0.2mm |
| Rotation Accuracy | |
| Parallelism | |
| Wavefront Distortion | λ/4 |
| Surface Quality | 20/10 scratch and dig |
| Rotation | clockwise and counter-clockwise |
| Coating | AR coating available, R<0.25%@central wavelength |
Astar are specialized in the production of various specifications of optical components according to the customers’ demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.
